Overview

Overview

In the past, conventionally wired systems were common. Nowadays, bus technology and the use of remote IO systems are established throughout the industry. This reduces the cabling effort significant and saves costs. In particular compact IO modules allow a spatial layout of the system in the field. Sensors and actuators in hazardous areas can be connected directly to the BEx module. Isolating amplifier as well as analogue and digital IO modules are no longer necessary in the safe area.

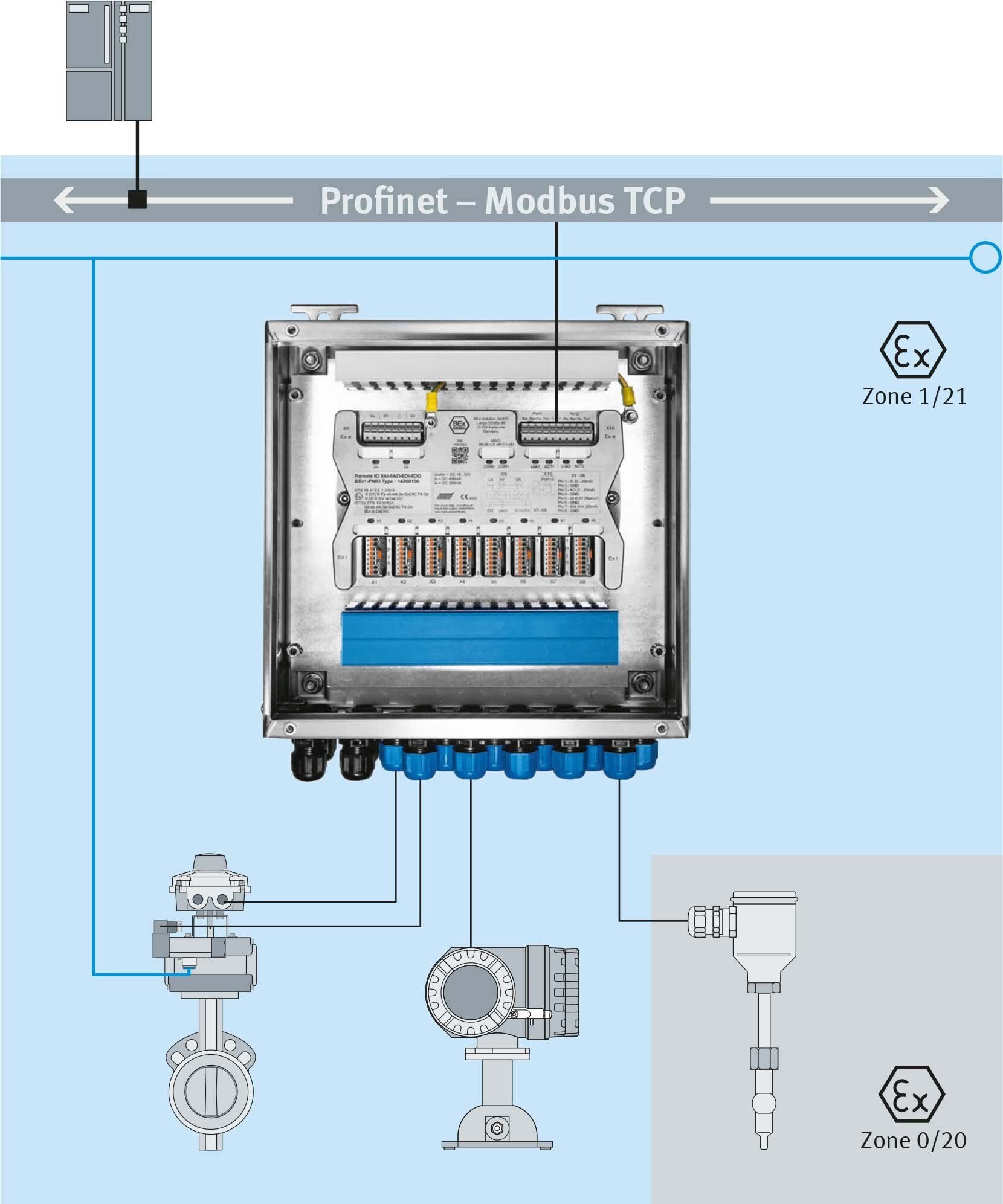

Installation scheme BEx1 IO box and single valves

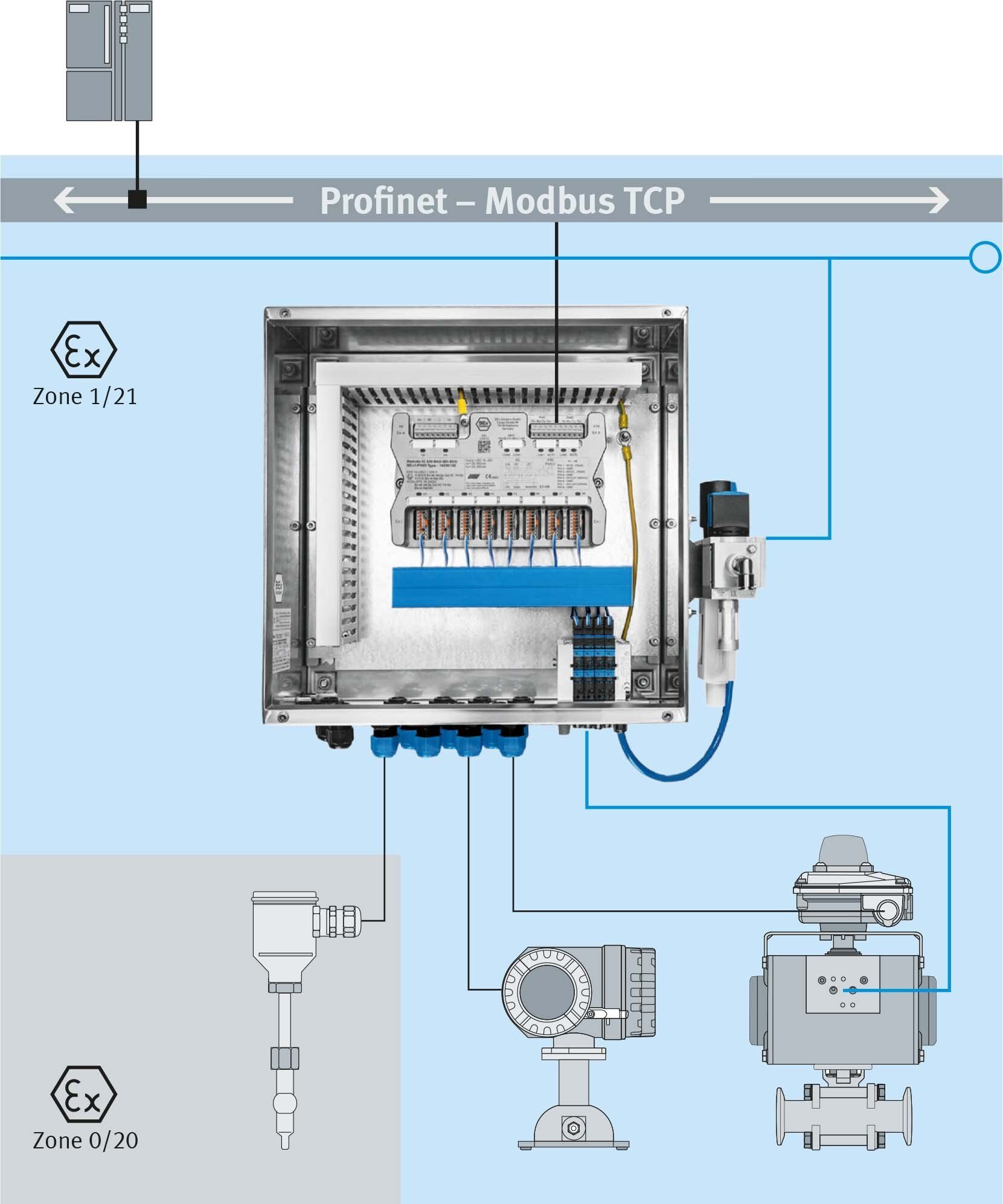

Installation scheme BEx1 Remote IO valve terminal

BEx Remote IO solutions

Application advantage and customer value

Multifunctional

32 channels

Plug and Play

Cost saving

IO variations 16DI 8DO 8DO(AIO)

  • 16xDI Namur / 16xDO
  • 16xDI Namur / 8xDO / 8xAIO
  • 16xDI Namur / 8xDO / 8xSwitching Mode




  • Cost saving and less installation effort
  • Ideal for decentralized solution
  • Isolation amplifier and IO modules on PLC side are not longer required
  • Ex-coupler for Ethernet conncetion in safe area is not longer required
  • Small design → small footprint
  • Multifunctional module → versatile application
  • No programming required on module "Plug & Play"   → Time saving



Support of all common Industrial Ethernet bus systems

BEx1

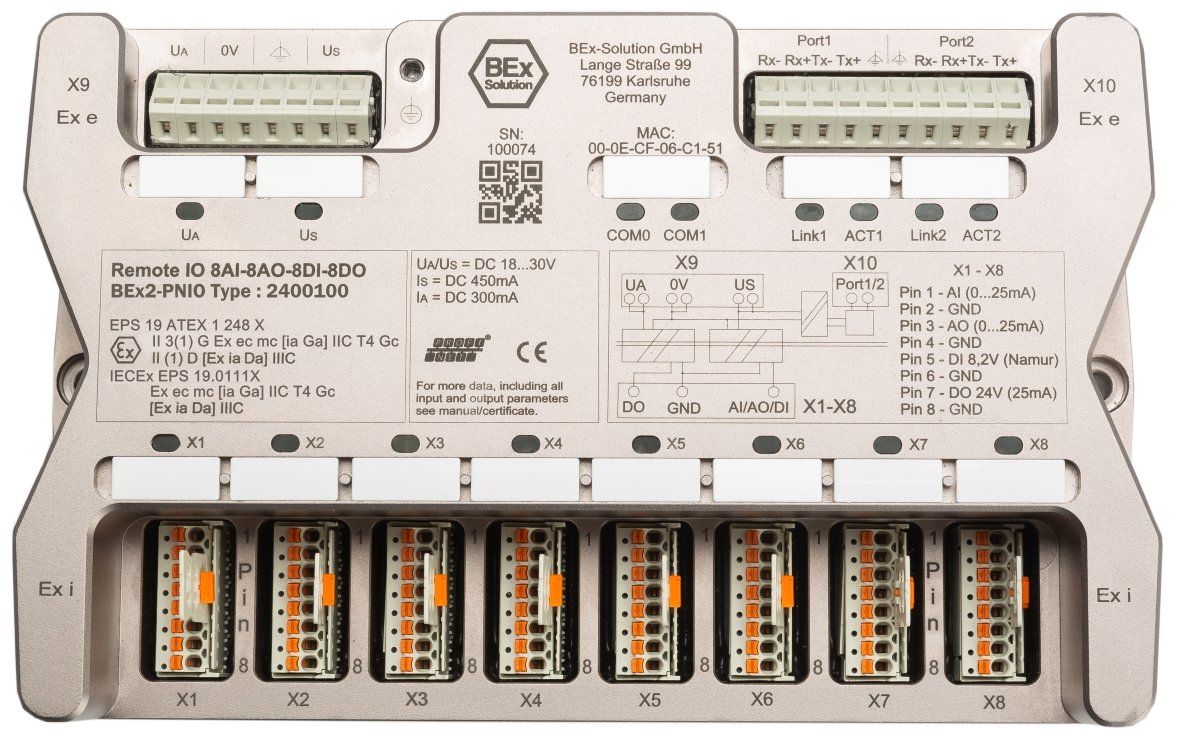

BEx Remote IO Module
Go to product
BEx1

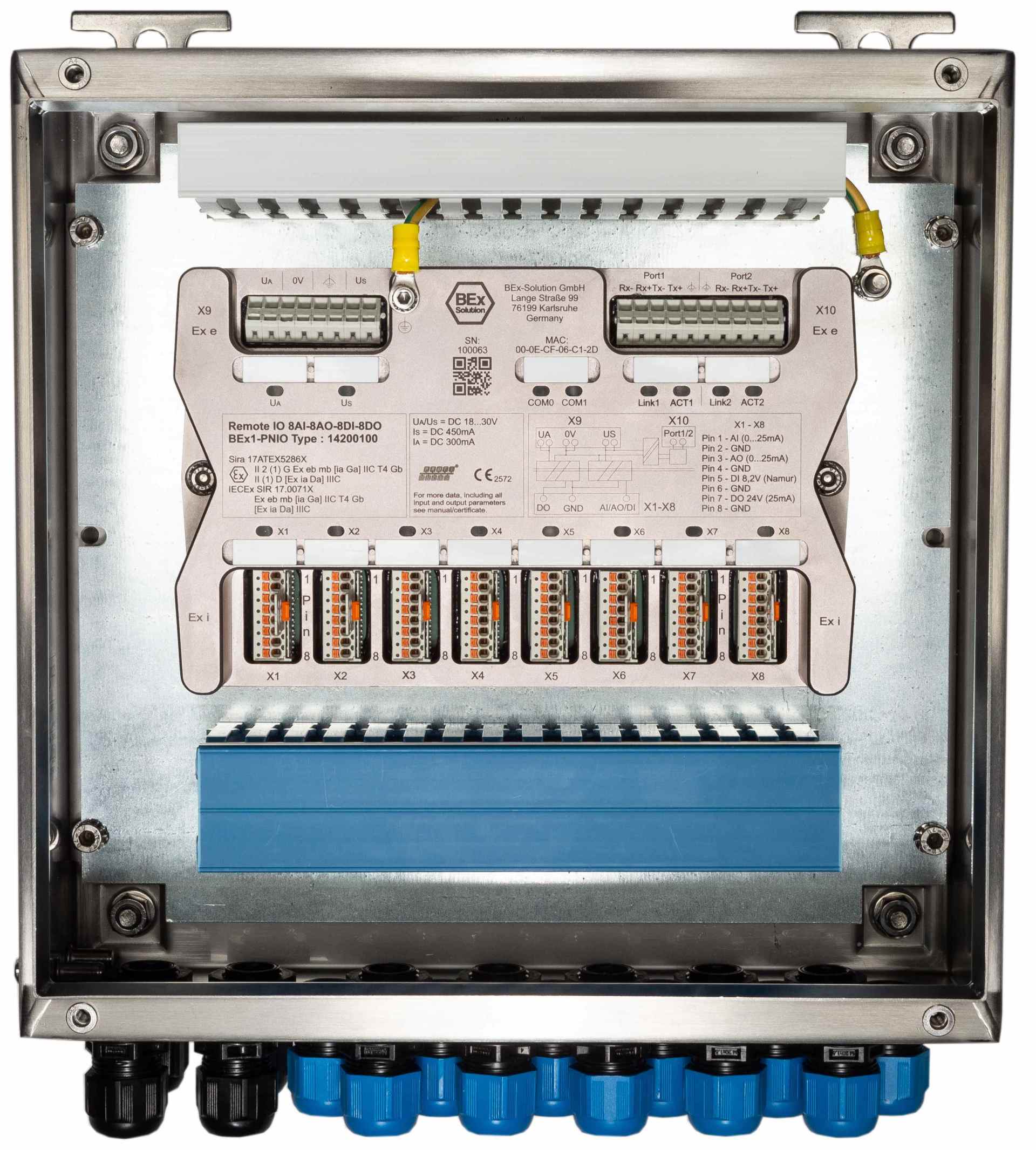

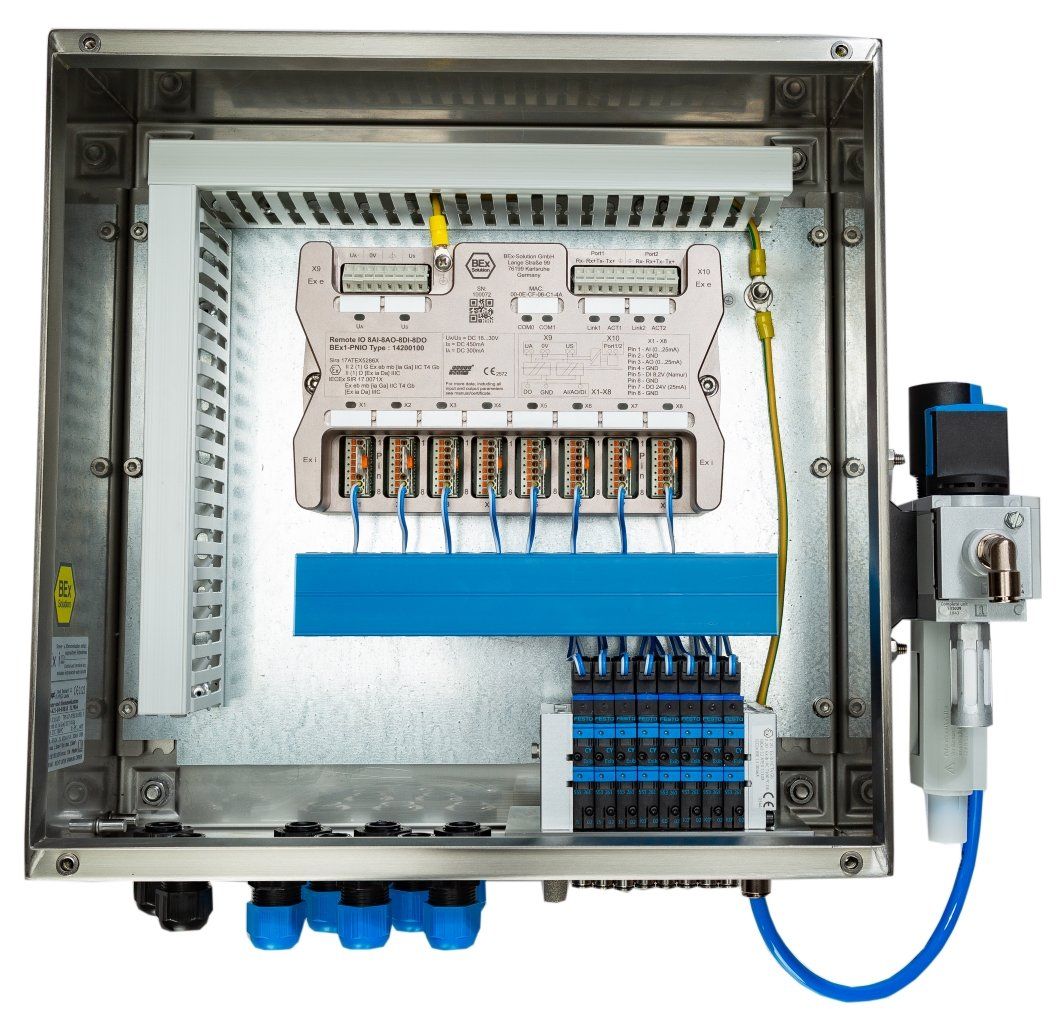

BEx1 IO Box
Go to product
BEx1

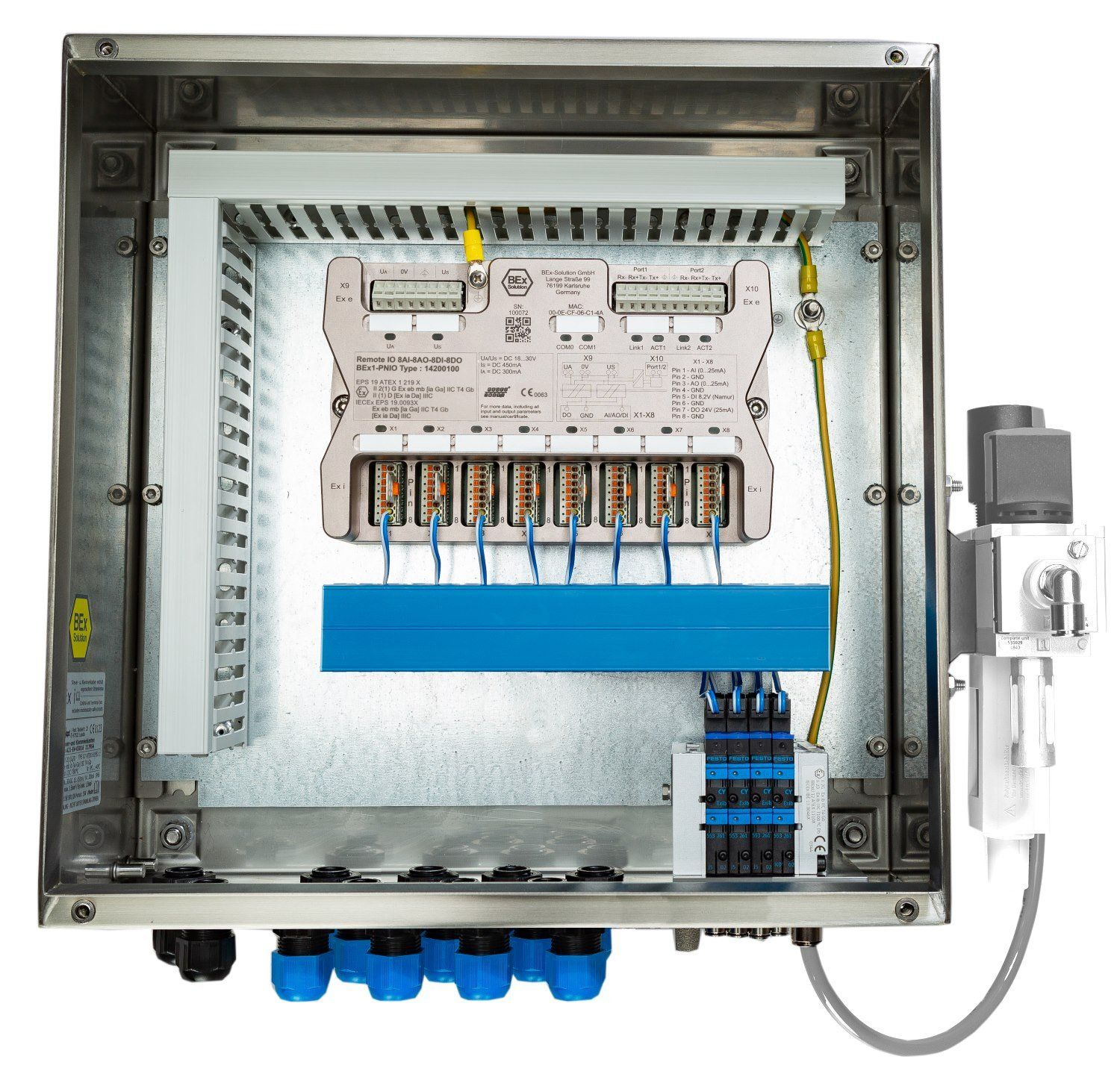

BEx1 IO Valve Box

Go to product
BEx1

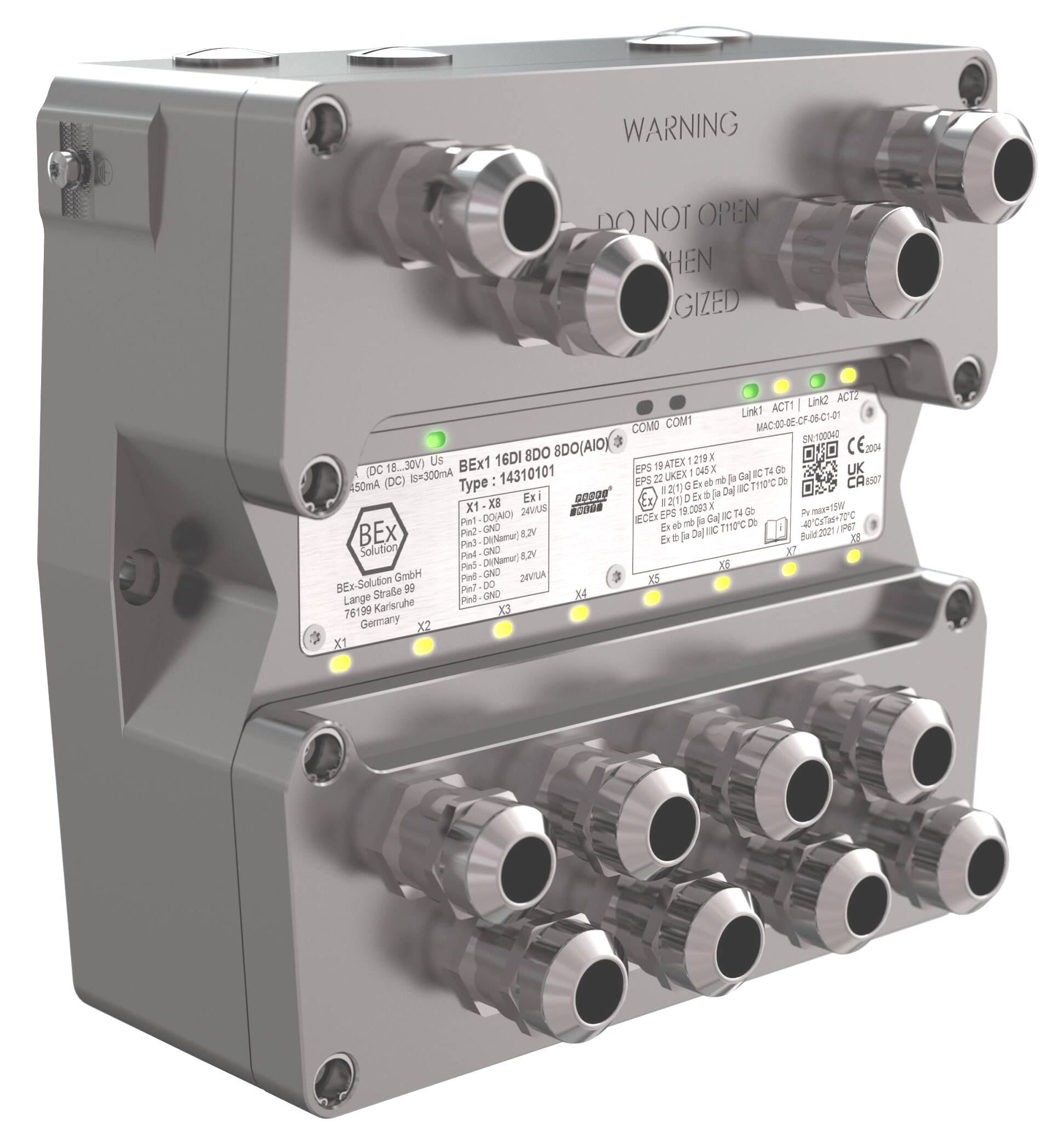

BEx1 IP67 Ex i

Go to product
BEx1

BEx1 IP67 Ex e

Go to product
