BEx1 IP67 Ex i
BEx1 IP67 Ex i for Ex zone 1/21
or

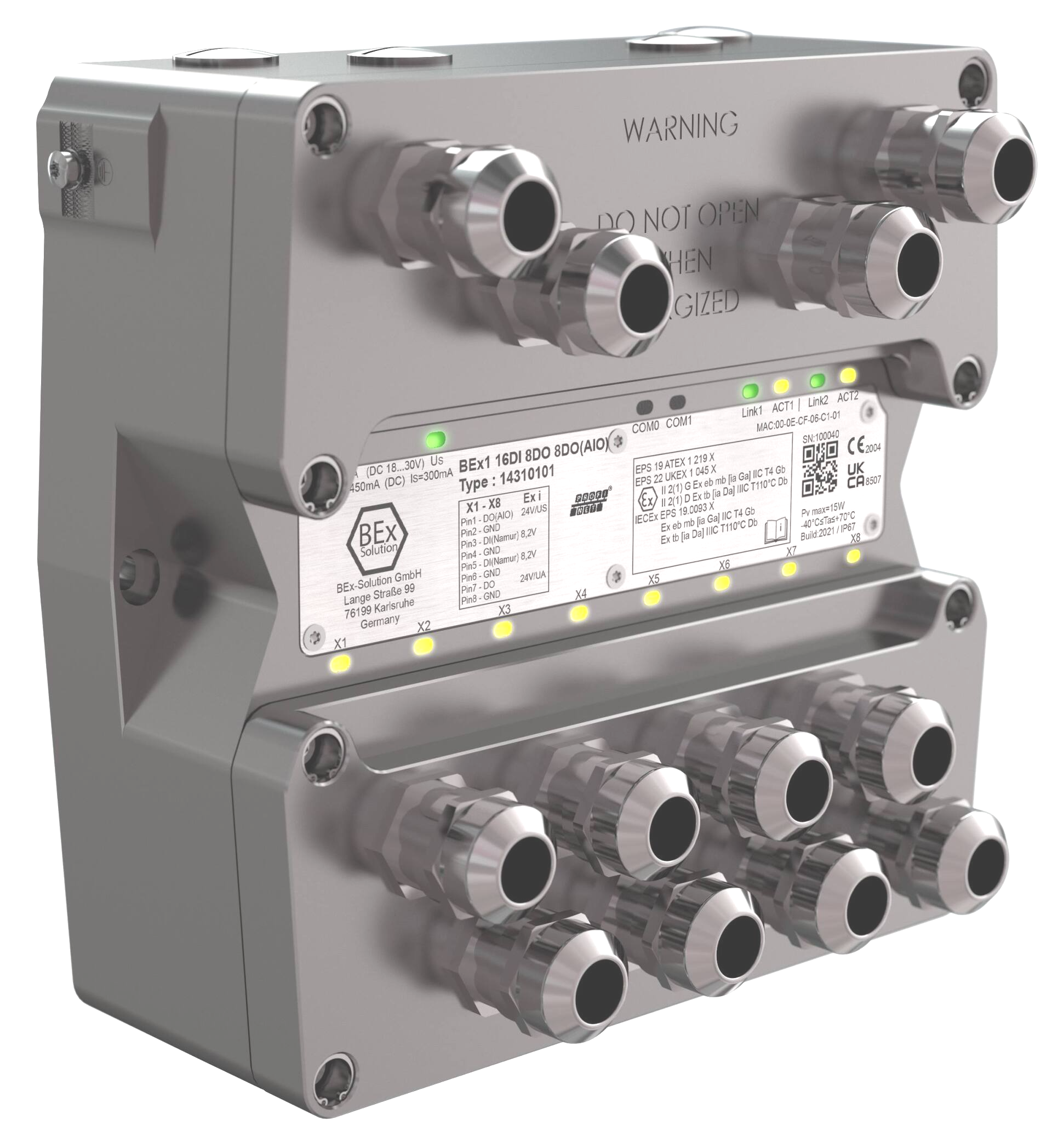

Compact IO module for Ex Zone 1/21 with Profinet or Modbus TCP/IP.
The module include busnode, isolating amplifier and 32 intrinsically safe analog and digital IO channels on
smallest space.
The module can be installed directly in Zone 1/21 and connects sensors and actuators from Zone 0/20.
Feature
▪ Fully potted → extreme robust
▪ IO variations 16DI 8DO 8DO(AIO)
• 16xDI Namur / 16xDO• 16xDI Namur / 8xDO / 8xAIO
• 16xDI Namur / 8xDO / 8x switching
▪ None configuration on module required
▪ Separate power supply for sensor and actuator
▪ Comprehensive diagnostics for each channel
• open load detection
• prefault detection
• short circuit detection
▪ Galv. separation between channels and system
▪ Internal temperature monitoring
▪ Operating hours counter
Explosion protection
EPS 19 ATEX 1 219 X
EPS 22 UKEX 1 045 X
II 2(1) G Ex eb mb [ia Ga] IIC T4 Gb
II 2(1) D Ex tb [ia Da] IIIC T110°C Db
IECEx EPS 19.0093X
Ex eb mb [ia Ga] IIC T4 Gb
Ex tb [ia Da] IIIC T110°C Db
Class I, Division 2, Groups A, B, C, D
Class I, Zone 1, AEx eb mb [ia Ga] IIC T4 Gb
Class II, Division 2, Groups F, G
Zone 21, AEx tb [ia Da] IIIC T110°C Db
Power supply
Operating voltage UA/uS DC 18...30V
Current module and sensors supply IS DC 450mA
Current actuator supply IA DC 300mA
Power dissipation max. 15 W
Reverse polarity protection Yes
Ambient conditions
Operating temperature -40°C ... 70°C
Storage temperature -40°C ... 80°C
Enclosure type (EN 60529) IP 67
Fieldbus data
Addressing Profinet via DCP
Addressing Modbus TCP/IP DHCP or fix
Transfer rate 10/100 MBit/s
Delay in signal change < 10ms
IO variations
• 16xDI Namur / 16xDO
• 16xDI Namur / 8xDO / 8xAIO
• 16xDI Namur / 8xDO / 8xSwitching
Mechanical data
Dimensions (LxWxH) 214 x 206 x 115mm
Mounting position Any position
Weight approx. 5400g
Housing material Aluminum (galvanized)
