BEx1 valve box

3 in 1 solution for Ex area

Powered by FESTO and Exepd

BEx Remote IO valve terminal

With the 3 in 1 solution, the plants and machine builders have a decentralized and compact Remote IO valve terminal for the first time
for controlling pneumatic actuators for the hazardous area Zone 1/21.
High flow rate in a small space - State-of-the-art bus technology - Unique: The structural design
Tested system solution from
innovative und kompakte Ex Remote IO Module mit Busanbindung
betriebsbewährteEx i Ventilinsel
zertifizierter Systemeinbau in Ex e Feldgehäuse

Applications

  • Paint shops

  • Pharmaceutical plants

  • Chemical plants

  • Tank farm
  • Bulk materials handling systems

  • Mixing / grinding plants

  • Industrial heating / cooling systems

  • Sewage treatment plants and much more

Integration

  • The Ethernet connection (Profinet or Modbus TCP / IP)
    is executed in increased safety Ex e.
  • Ex media converters or fieldbus couplers in the safe area are not required and the full Ethernet performance can be used.

  • No IO modules required on the PLC
  • The BEx1 module does not have to be parameterized or configured and behaves transparently in the control I / O.

Installation scheme BEx1 Remote IO valve terminal

Customer benefits

Compact - Simple - Fast



  • Central Ethernet connection, central compressed air connection
  • The compact housing enables optimal decentralized installation in the system and guarantees short distances to the sensors and the pneumatic actuators.
  • No compressed air tubing inside the housing.
  • Cost savings and less installation effort



The ATEX certified system in the field housing is designed for installation in Zone 1/21

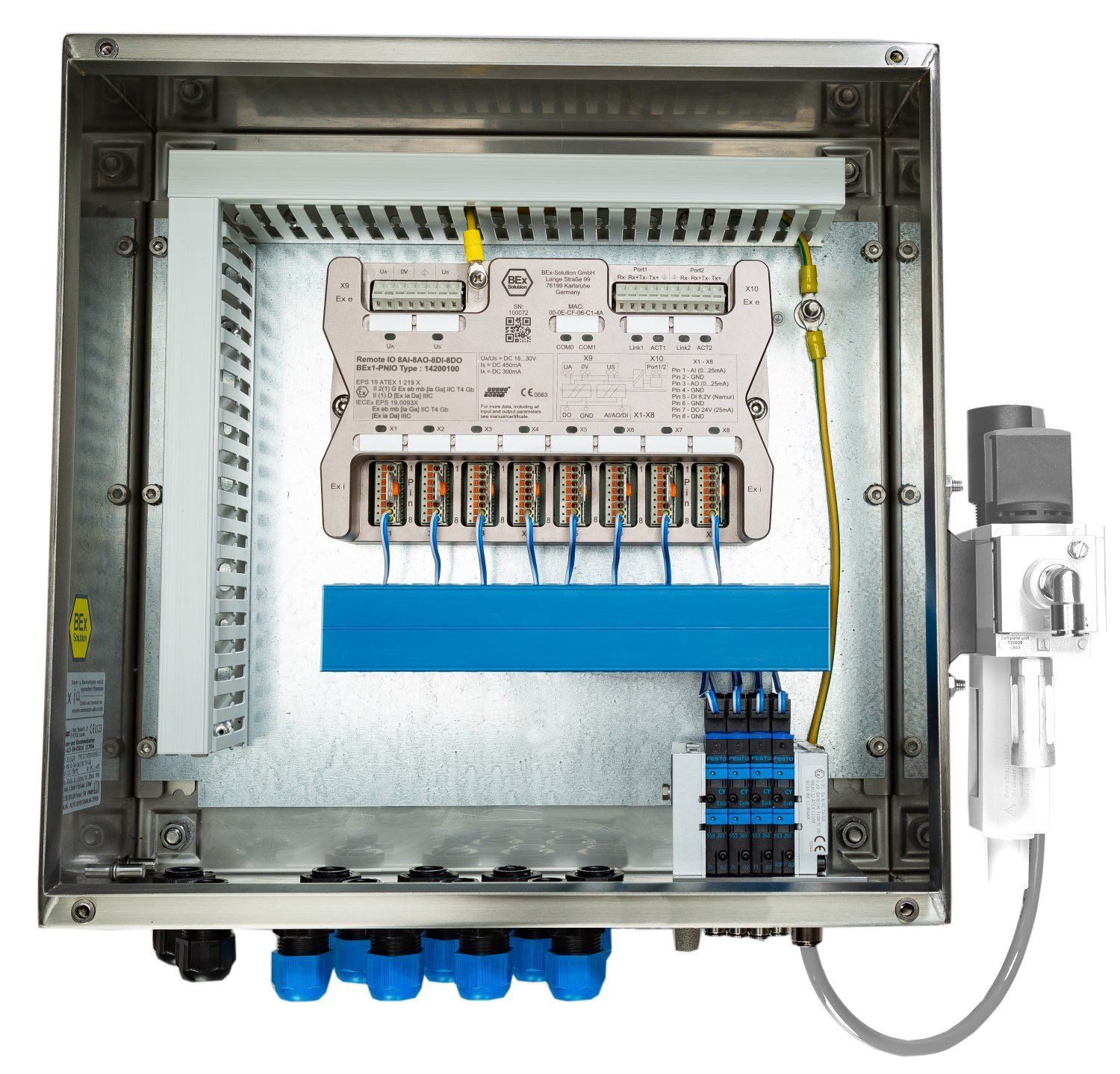

The BEx1 Remote IO valve terminal combines bus nodes, isolating switching amplifiers, intrinsically safe IO channels and the pneumatic valve terminal.


Functions and communication

Function



  • 8 outputs to 8 valves 3/2 way pre-wired
  • 16 Namur inputs for position feedback
  • 8 additional channels individually adjustable

(AI, AO or DO or switch mode)



Communication

Design

8 DO to 8 valves 3/2-way pre-wired
16 Namur inputs
8 additional channels individually adjustable as
AI, AO or DO or switch mode

Design:

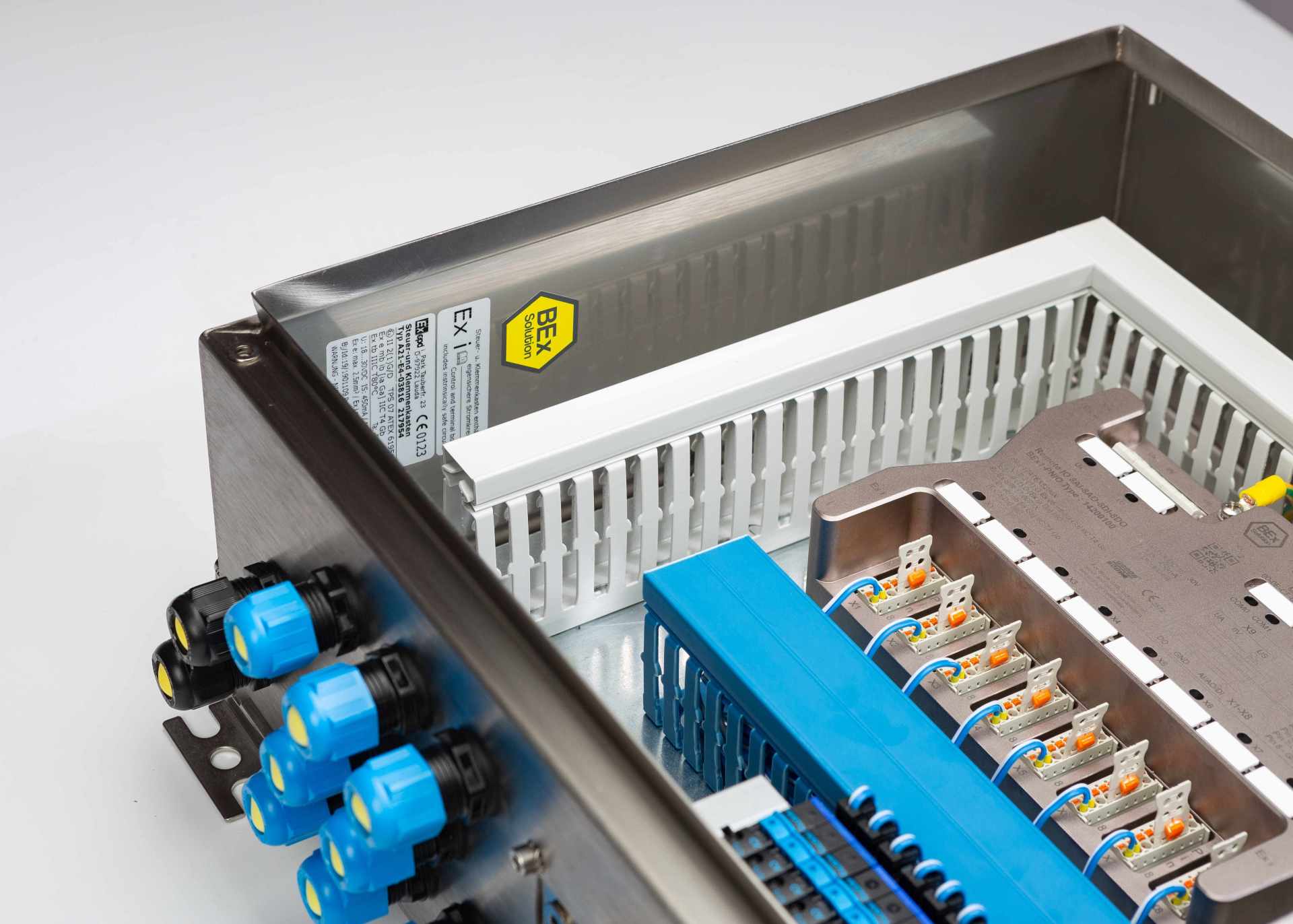

Ex e enclosure IP65 Stainless steel 1.4404 (V4A)
Dimension: 380 x 380 x 161 mm
Ambient temperature: -5°C bis +40°C
Certificate: TPS 07 ATEX 61951 1
Type of protection: II 2(1)G/D
Ex e mb ib [ia Ga] IIC T4 Gb
Ex tb [ia Da] IIIC T80°C Db

4 cable glands M20x1,5 (Ex e) 4-13 mm
20 cable glands M20x1,5 (Ex i) 4-13 mm
(all cable glands are closed with mushroom caps)
4 wall mounting bracket

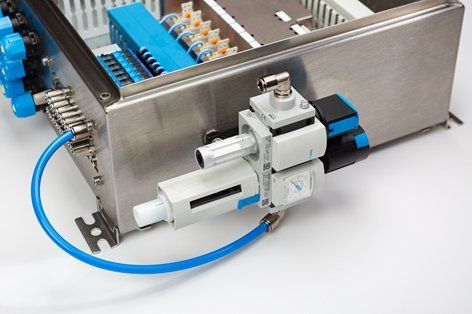

2 pull in nuts M5 (mounting for optional Festo service unit
   combination MSB4)

1 BEx1 remote IO Module Profinet type 14200101
  (Alternative Modbus TCP/IP)

1 Festo valve terminal CPV10 Ex i with aluminum multipole
   Typ 10P-10-4A-IC-R-Y-4CY-EX3+GQCA
   Equipped with 4 x CY 2x3/2 valves, normally closed, with integrated
   back pressure protection

shield rail with shield connection clamp or EMC cable glands on request

Valve terminal



  • The valve terminal CPV10-EX-VI is intrinsically safe
    II 2G Ex ib IIC T4 (-5°C ≤ Ta ≤ 50°C)
  • Pneumatic aluminum multipole, IP65
  • Valve discs 10 mm wide, nominal flow 400 l/min
  • Operating pressure: 0 .. 10 bar ; Pilot pressure: 3 .. 8 bar
  •  4 valve discs with valve 2x 3/2- way
    (further variants on request)
  • Manual override detent
